STEPPERONLINE Nema 17 Stepper Motor Bipolar 2A 59Ncm(84oz.in) 48mm Body 4-lead W/ 1m Cable and Connector compatible with 3D Printer/CNC
This is an updated version nema 17 stepper motor with holding torque of 59Ncm(83.6oz.in). Based on old verstion, we have lengthened motor cable length to 1 metre, and add a 4-pin 0.1″ pitch (2.54mm) Harwin female connector at the end of cable. It’s a good ideal for 3D printers, as well as CNC and robotics applications.
Important notice: Some customers reported they bought this model from other sellers under this listing, but found much of difference with our description(no connector and shorter leads). We highly recommend you report this problem to Amazon if you have same experience. If you are a new buyer, please pay attention that our ID is “STEPPERONLINE”, and our P/N is "17HS19-2004S1".
Electrical Specification:
* Manufacturer Part Number: 17HS19-2004S1
* Motor Type: Bipolar Stepper
* Step Angle: 1.8 deg.
* Holding Torque: 59Ncm(83.6oz.in)
* Rated Current/phase: 2.0A
* Phase Resistance: 1.4ohms
* Inductance: 3.0mH+/-20%(1KHz)
Physical Specification:
* Frame Size: 1.65″ x 1.65″ (42 x 42mm)
* Body Length: 1.89″ (48mm)
* Shaft Diameter: 0.2″ (5mm)
* Shaft Length: 0.94″ (24mm)
* D-cut Length: 0.59″ (15mm）
* Number of Leads: 4
* Lead Length: 39.37″ (1000mm) with connector
* Weight: 390g
Connection:
Black(A+), Green(A-), Red(B+), Blue(B-)
Warning:
Make sure the motor connect to a constant current or chopper drive controller before you test motor.
Connecting the motor directly to a power supply will destroy the motor.
High Torque Nema 23 CNC Stepper Motor 114mm 425oz.in/3Nm CNC Mill Lathe Router
Nema 34 Stepper Motor 6A 12Nm (1700 oz-in) 156mm Length for CNC Router Mill Lathe
Specifications:
- Manufacturer Part Number: 34HS59-6204S
- Step Angle: 1.8°
- Step Accuracy: 5%
- Holding Torque: 12Nm (1700oz.in)
- Rated Current/phase: 6.2A
- Rated voltage: 36V/48V
- Resistance/phase: 0.8ohms
- Inductance/phase: 9mH±20%(1KHz)
- Insulation Resistant 100 MOhm Min 500V DC
- Ambient Temperature: -20°C~+50°C
- Control Cable: 4
- Weight: 5.2kg
ALFA ROMEO 3D METAL COLORFUL KEYCHAIN
STEPPERONLINE 5PCS Nema 17 Stepper Motor 1.5A 12V 45Ncm (63.74oz.in) 4-Lead 39mm Body W/ 1m Cable and Connector for DIY CNC/ 3D Printer/Extruder
Nema 17 Stepper Motor, DROK 40mm High Torque Bipolar DC Step Motor Kit, 0.46Nm Low Noise 42 2-Phrase Universal Electric Motor DC motor for 3D Printer Laser Engraving
- HIGH TORQUE: Adopting high quality motor steel material, DROK 3d printer stepper motor kit is provided with high torque (0.46 Nm/ 65 oz-in), low self-inductance reactance, responsive and can avoid system error.
- LOW NOISE: The internal rotor of our anet anet a8 stepper motor kit is made with introduced German craftsmanship and there is rotor rubber covering the rotor, effectively reduce the noise.
- DURABLE & TOUGH: Our mini motor uses high hardness metal, tough and durable. And the matte texture in the side wall can increase friction.
- WIDE APPLICATION: This small motors can be used in various area, such as stage lighting
- laser engraving
- textile machinery
- medical equipment
- placement machine
- non-standard equipment
- 3D printer
- automation equipment, and etc..
- WHAT YOU GET: The package includes 1* 42 Stepper Motor.
Product Parameters:
Product name: Bipolar 42 Stepper Motor
Holding torque: 0.46 Nm/ 65 oz-in
Working voltage: DC 9-42V
Rated current: 1.7A
Resistance: 2.1 ohm
Inductance: 4mH
Rotor inertia: 55gcm2/ 0.30oz-in2
Weight: 0.28kg
Length: 39.5mm/ 1.56 inch
Phrase: 2
Step angle: 1.8°
Motor frame size: 42*42mm
Wiring:
Black (A+); Green (A-); Red (B+); Blue (B-)
Application:
Stage lighting; laser engraving; textile machinery; medical equipment; placement machine; non-standard equipment; 3D printer; automation equipment
Warm Tips:
Please note that this motor cannot be connected to the power supply directly. It should be connected to a constant current driver, otherwise, it will destroy the motor.
Please ensure that the output current is not higher than the rated current of the motor (1.7A) or exceed the working voltage range of the motor (DC 9-42V).
Product Includes:
1* 42 Stepper Motor
Twotrees Nema 17 Stepper Motor + Stepper Motor Driver, TB6600 4A 9-42V Nema 17/23 CNC Controller Single Axes Hybrid – Upgraded Version …
- 【1】Package included: 1 x Stepper Motor Driver,1 x Stepper Motor, 1 x Wire.
- 【2】Suitable for a wide range of stepper motors from NEMA size 17,23 and 24 (42 * 42mm to 60 * 60mm). It can be used in various types of machines, such as XYZ tables, labellers, laser cutters, engraving machines, pick-place devices and so on.
- 【3】Motor driver: 9V-42V DC power supply, H-bridges bipolar constant phase current drive. The maximum 4.0A of the eight types of output current.
- 【4】The largest 32 divisions of the 6 models are optional
- Suitable for 4 wires, 6 wires and 8 wires stepper motor.
- 【5】Protect form: Overheated protection, overcurrent protection, undervoltage protection, prevention of inversion.
If you want to know more information about the product, welcome to download the English manual :
https://s3.us-east-2.amazonaws.com/stepper-motor-driver/TB6600/MYSWEETY+TB6600+Stepper+Motor.pdf
Feature:
PWM chopper type bipolar stepper motor driver IC
1. 9V-42V DC power supply.
2. H bridge bipolar constant phase flow drive.
3. the maximum 4.0A of the eight kinds of output current.
4. the largest 32 subdivision of the 6 models are optional.
5. input signal high speed photoelectric isolation.
6. common-anodestandard single pulse interface.
7. offline to maintain the function.
8. semi closed enclosure can be adapted to a more stringent environment.
9. to provide energy-saving semi-automatic current lock function.
10. built-in temperature protection and over current protection.
Can control 2 phase stepper motor forward and reverse rotation, With 1-2, W1 -2 , 2W1 -2, 4W1 -2 phase excitation mode.
Only the clock pulse signal can be driven two-phase bipolar stepper motor to achieve low vibration, high efficiency work.
IC parameter:
single chip bipolar sine microstep stepper motor driver.
the new BiCD 0.13 nm process.
up to 42V.
resistance (a +) = 0.4
the forward and reverse rotation control.
5 subdivision mode options (1/1, 1/2, 1/4, 1/8, 1/16,1/32)
output current: IOUT = 4.0A (peak, in 100ms)
rated output: IOUT = 3.5 A
package: HZIP25 – 1.00F
input port internal pull-down resistor: 100 K
alarm output pin current:Ialert = 1mA
monitoring output pin (MO): Imo= 1mA
with reset and enable pin
with standby function
Break through the traditional, single power supply
built in overheating protection (TSD) circuit
Undervoltage protection, built-in (UVLO) circuit
built-in overcurrent detection (ISD), circuit
Package Included:
1 x Motor Driver.
1 x Steeper Motor.
1 x wire.
Nema 23 Stepper Motor 4.2A 3.0Nm (425oz.in) 100mm Length for CNC Mill Lathe Router
This is the most powerful Nema 23 stepper motor available. With 1.8 deg step angle (200 steps/revolution). Each phase draws 4.2A, allowing for a holding torque of 3.0Nm (425oz.in).
Specifications:
- Manufacturer Part Number: 23HS45-4204S 57×100
- Step Angle: 1.8°
- Holding Torque: 3.0Nm(425oz.in)
- Rated Current/phase: 4.2A
- Phase Resistance: 0.9ohms
- Recommended Voltage: 24-48V
- Inductance: 3.8mH±20%(1KHz)
- Weight: 1.8kg
- Lead Length: 30cm

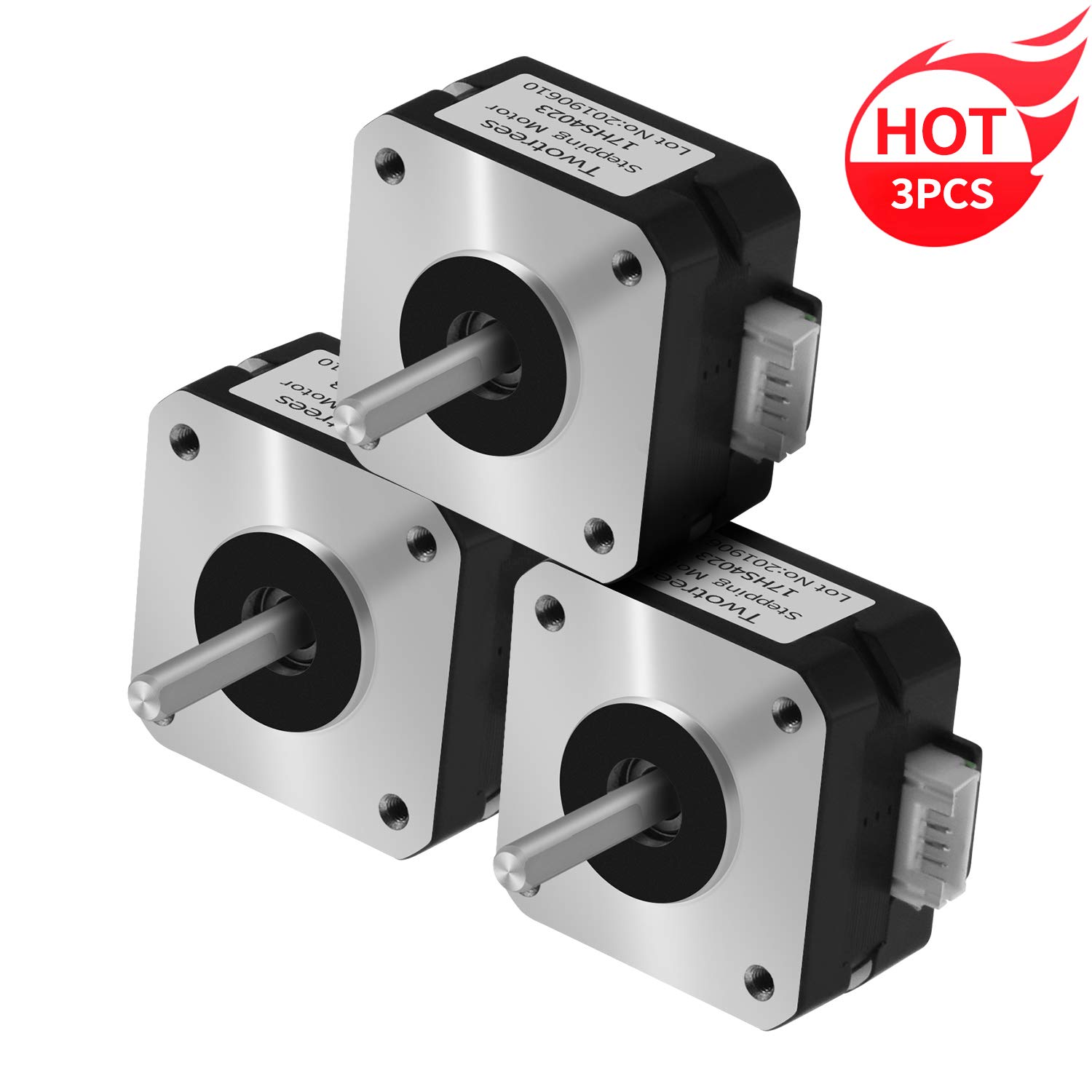

Twotrees 4 Lead Nema17 Stepper Motor 42 Motor Nema 17 Motor 23mm 42BYGH 23MM 1.5A Motor for CNC XYZ 3D Printer Motor (Pack of 3）
- High Torque: Twotrees stepper motor Adopting high quality motor steel material, is provided with high torque (42Ncm(60oz.in) ), low self-inductance reactance, responsive and can avoid system error.Low loss stators have better high speed performance.
- Low Resistance: Twotrees stepper motor can get a lower resistance value compared to motors of the same thickness and torque. This considerably increases the thermal conductivity of the motor. This effectively reduces the increase in temperature.
- Wide Application: This small stepper motors can be used in various area, such as 3D printer
- stage lighting
- laser engraving
- textile machinery
- medical equipment
- placement machine
- non-standard equipment
- automation equipment etc.
- Excellent Service : CE certified：Each nema 17 stepper motor has undergone a rigorous quality control ex works, can carry out a 24-month quality assurance . If need further please feel free contact us, we very happy to assist you.
- What Do You Get: The package includes 1* 38mm Stepper Motor/1pcs 1m 4pins cable and connector (Size: 42mm X 42mm X 38mm/1.65”x1.65”x1.49” ,NEMA 17 bipolar 4-wire:Black: A+, Green: A-, Red: B+, Blue: B-
This is high torque Nema 17 stepper motor with 1.8 deg.Each phase draws 1.5A,allowing for a holding torque of 42N.cm (60oz.in）
40cm wire, one connect electrical machine, on the other end has variety optional ports.
It’s ideal for the RepRap Prusa, Mendel 90, Rostock and， similar 3D printers, as well as CNC and robotics applications.
The motor is supplied with a 1 metre long power cable with a 4-pin Harwin female connector already fitted – ready to plug and print!
Electrical Specification:
Product type:Bipolar 42 Stepper Motor
Step Angle: 1.8 deg.
Rated Current/phase: 1.5A
Holding Torque:42N.cm (60oz.in)
General Specification:
Step angle accuracy: + – 5%(full step,not load)
Resistance accuracy: + – 10%
Inductance accuracy: + – 20%
Temperature rise: 80deg Max(rated current,2 phase on)
Ambient temperature ———-20deg ~+50deg
Insulation resistance:100M Min,500VDC
Insultion Strength——–500VAC for one minute.
Package Included:
3 X Nema 17 Stepper Motors
3 X Cables
(Pack of 4pcs) NEMA17 Stepper Motor High Torque Bipolar DC Step Motor Kit by MOTOU
- BROAD USE: Widely used in various fields, such as 3D printers, stage lighting, laser engraving, textile machinery, medical equipment, automation equipment, etc.
- HIGH TORQUE : Made of high-quality motor steel material, low self-inductance reactance and responsiveness to avoid system errors. Low loss stators offer better high speed performance.
- LOW NOISE: The inner rotor of our anet anet a8 stepper motor kit is made in Germany and the rotor rubber covers the rotor to reduce noise.
Specifications:
Holding torque: ≥330mN.m
Detent torque: 18mN.m REF
Rated voltage: DC 3.4V
Rated current: DC 1.0A
Wnding Inductance: 5.4×(1± 20%)mH
Step angle: 1.8°±0.09°
Max Blank switching frequency: ≥ 2000pps
Rotational inertia: 43.2g.cm 2
Motor Weight: 0.22 kg / pcs REF
Phrase: 2
Package Included: 4×Nema 17 Stepper Motor
4×Cable
